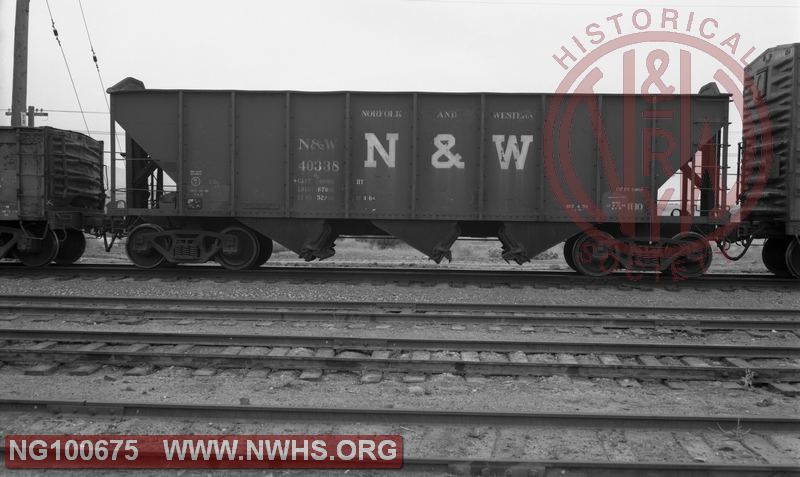

 No, I don't think it would.  The differences are too distinct and noticeable.  Next to the HUa hoppers, the H10 hoppers are the most distinct 3-bay hoppers the N&W had.  In this picture you can clearly see the different angles on the slope sheets.  Jerry Kay, Jarratt, Virginia


    On Tuesday, May 20, 2025 at 02:32:16 PM EDT, NW Modeling List via NW-Modeling-List <nw-modeling-list at nwhs.org> wrote:

 Thanks for the overlay Mike!
Based on Mikes overlay, the H2a would make a passable stand-in for the H10. This is, of course, a subjective call from someone who is using the H2a as a stand-in for HUs (another car with the same dimensions, but even bigger visual differences).
Matt GoodmanColumbus, Ohio
Sent from my mobile
On May 20, 2025, at 6:40 AM, NW Modeling List via NW-Modeling-List <nw-modeling-list at nwhs.org> wrote:

 That's what I was going to say.  Look at the ends.  Significant differences.Jerry Kay, Jarratt, Virginia
    On Monday, May 19, 2025 at 01:00:37 PM EDT, NW Modeling List <nw-modeling-list at nwhs.org> wrote:

 The big visual difference is that the H10 had the slope sheets in 2 parts, with the upper part having a steeper angle of slope. This also causes the end sheets to look a bit different too.
Brent Greer
Dr. J. Brent Greer From: NW-Modeling-List <nw-modeling-list-bounces at nwhs.org> on behalf of NW Modeling List <nw-modeling-list at nwhs.org>
Sent: Monday, May 19, 2025 9:51:38 AM
To: NW Modeling List <nw-modeling-list at nwhs.org>
Subject: H10 model I asked several weeks ago about identifying a coal hopper and the identity was a H10.
Could the BLI H2 be used as a stand in since the overall measurements are the same?I have looked several times at the NW coal hopper book and see no real discrepancy in measurements.

James WallRural Hall, NC
